The Enigma Enciphering Machine was invented in 1918 by German engineer Arthur Scherbius. It’s an electrical Morse code-producing device that used a keyboard, lamps and a set of rotors to scramble text, then send it out to a receiving machine whose rotors were set in the exact same way as the originating machine’s. Enigma first went into production in the early 1920s and was used for civilian applications such as the protection of corporate trade secrets and private communications.





























































PIC Enigma Machine





 PIC M3 Enigma Machine Video



If the PIC Enigma Machine doesn't detect a AT/XT keyboard, then kb will be displayed.



The 7x5 dot matrix displays are red, which is not shown very clearly in the pictures or video.

Components needed for this project:

4.5v (No voltage Regulator needed)

1x - PIC16F628A

1x - PIC 18-Pin Socket

1x - PS/2 Mini Connector

1x - 7x5 Dot Matrix Display

5x - 100ohms (Brown, Black, Brown, Gold)

1x - Disk Capacitor 100nF



You will also need the following if using a 9v Battery

2x  Electrolytic Capacitor 10uF 16v

1x - 5v Voltage Regulator 78L05



Purchase from MADLAB £17.05



_________________________________





Wireless Arduino Enigma Machine





Wireless Arduino Enigma Machine



Components needed for this project:

1x Arduino UNO

1x 16x2 LCD Display

1x Logitech Cordless Desktop Express Keyboard & Receiver



_________________________________





Wireless Arduino Enigma Machines



1. Top right - German Army Field Enigma Machine

(Transmitting ciphertext using daily settings)



2. Top left - German Army Headquarters Enigma Machine

(Receiving ciphertext & decoding using daily settings)



3. Bottom - Bletchley Park Codebreakers

(Receiving ciphertext by wireless intercept stations)

 After interception, the encrypted messages were sent to Bletchley Park to be decrypted.





When you type on the keyboard the top right (German army field Enigma Machine) displays the plaintext and using the daily settings below decodes the message into ciphertext. The message is then transmitted using Morse Code.



Daily Settings

Reflector: B

Rotor Order: 1 2 3

Ring Start Setting: A A A

Rotor Start Setting: A A A



 German Army headquarters Enigma Machine (top right) receives the ciphertext and using the daily settings decodes the message back into plaintext.



'Y' service (wireless intercept stations) United Kingdom.

After interception the ciphertext messages would be taken to Bletchley Park Codebreakers for analysis, and using the Bombe to retrieve the daily settings for the Enigma Machine.

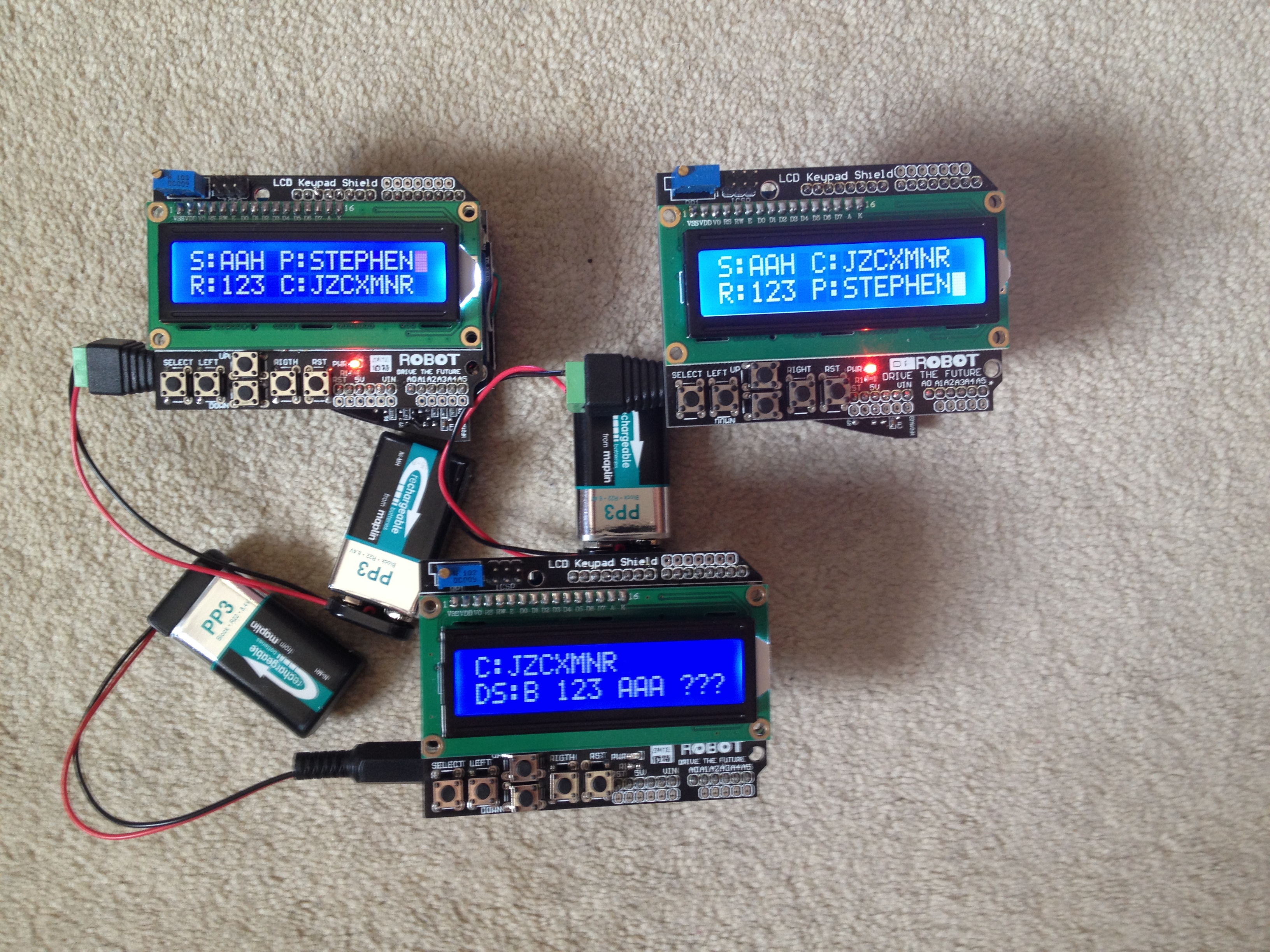

Arduino Wireless Enigma Machine Displays



German Army Field Enigma Machines

S: = Rotor Start Position (AAA)     P: = Plaintext

R: = Rotor Order              (123)     C: = Ciphertext



German Army Headquarters Enigma Machines

S: = Rotor Start Position (AAA)     C: = Ciphertext

R: = Rotor Order              (123)     P: = Plaintext



Bletchley Park Codebreakers

C: = Ciphertext

DS: = Daily Settings (B 123 AAA ???)



Programming the Arduino with the settings:



Reflector: B

Rotor Order: 1 2 3

Ring Start Setting: A A A

Rotor Start Setting: ? ? ?



After time, the Arduino will decipher the correct Rotor Start  Settings, however.... trying to decipher the correct Ring Start Setting & Rotor Start Setting is proving a problem!





  Wireless Transmitter & Receiver



_________________________________





 Turing Welchman Bombe Simulator

by Simon Jansen







Applesoft Basic in JAVA

Bombe Code written in Applesoft BASIC





Simon's Completed Bombe Project



_________________________________





The Bombe Simulator



Click on The Turing-Welchman Bombe below



The Turing Welchman Bombe



Click on the Image below

The Bombe Simulator Instructions































Arduino Touch Screen Enigma Machine



Components needed for this project:

1x - Arduino UNO

1x - 2.8 inch Touch Screen (Maplin N10DP £35)

Using Libraries: TFTv2.h  &  SeeedTouchScreen.h

Touchscreen M3 Enigma Machine



_________________________________





To purchase the M3/M4 Arduino Touchscreen Enigma Machine with laser cut case and engraved logo below.

Please select either: eBay or Tindie





_________________________________



Pico Enigma Machine





https://www.instagram.com/explore/tags/picoenigma/



https://arduinoenigma.blogspot.com/



Purchase the Pico Enigma Machine

Click on Picture below



_________________________________





Arduino Enigma Machine





  Arduino UNO Enigma Machine



Components needed for this project:

1x Arduino UNO

1x 16x2 LCD Display



_________________________________





Paper Enigma Machine





Paper Enigma Machine Instructions



Click on Paper Enigma below to download

Designed for a Pringles Tube



By Franklin Heath Ltd



_________________________________





Excel Enigma Machine



            Excel Enigma A                         Excel Enigma B

Click Enable Editing & Enable Content after downloading.





















































































































































































































































___________________________________________________________________________________________________________________________________________________________________________________________________________

Enigma Machine



The Enigma Enciphering Machine was invented in 1918 by German engineer Arthur Scherbius. It’s an electrical Morse code-producing device that used a keyboard, lamps and a set of rotors to scramble text, then send it out to a receiving machine whose rotors were set in the exact same way as the originating machine’s. Enigma first went into production in the early 1920s and was used for civilian applications such as the protection of corporate trade secrets and private communications.


The German Navy began to use it in 1926, but it was the German Army who in 1928 created a version distinctly different from the commercial machine. They added a plugboard which swapped pairs of letters and vastly increased the encipherment permutations.








The Inner Workings of the Enigma Machine

 Dr James Grime at the Perimeter Institute, Canada

                       Full video from above, Starts from 14:15.





Enigma Machine

  Enigma Machine with Dr James Grime (Numberphile)



Why the Navy Enigma was different





Flaw in the Enigma Machine Code

  Flaw in the Enigma Machine Code with Dr James Grime





TypeX Machine







_________________________________







Turing's Enigma Problem (Part 1) - Computerphile

   Turing's Enigma Problem





Tackling Enigma (Turing's Enigma Problem Part 2) - Computerphile

   Tackling Enigma



_________________________________







  Code-Breakers Bletchley Park's Lost Heroes



William Thomas "Bill" Tutte, OC FRS FRSC

Thomas "Tommy" Harold Flowers, MBE



Lorenz Cipher Machine - (Known as Tunny in the UK)





 Lorenz Cipher Machine





Virtual Lorenz





Virtual Colossus











Enigma-E

Enigma Machine



  PEEK Enigma-E



PEEK Enigma-E in Morse Code Mode



PEEK Enigma-E Arduino TEST





Enigma-E Manual



Enigma-E Wiring Schematic



_____________________________



More information from the the Crypto Museum









   Enigma-E Demonstration



_________________________________





M3 Enigma Machine

Double Stepping TEST



M3 Enigma Machine Setting:



Reflector: B

Rotor Order: 3 2 1

Ring Setting: A A A

Rotor Start Setting: A D O



Message:   S  T  E  P  H  E  N  P  E  E  K

Encryption: T  V  U  V  R  T   I   W  J  F  A
